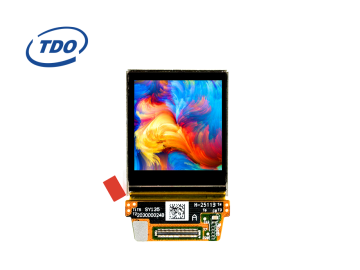

2.4 Inch Type‑C TFT LCD Display Module 480×640 ST7701S IPS CTP

Short Description:

2.4" Type‑C TFT‑LCD module,480*640 resolution,ST7701S IC,680 nits high brightness,IPS panel with CTP touch,‑wide temperature range.Sample available for industrial projects.


  • Size: 2.4
  • Resolution: 480*640
  • Interface: Type C
  • Luminance (nits): 680
  • Viewing angle: ALL
  • Overall size: 48.72*70.26*10.8
  • Active Area: 36.72*48.96
  • IC: ST7701S/TBD
  • Remark: Wide Temperature/IPS/CTP
down load to pdf

Product Details

Product Tags

This 2.4‑inch Type‑C TFT LCD display module comes with 480*640 resolution, driven by ST7701S IC. Adopting Type‑C video input interface, it supports simple plug‑and‑play connection without extra adapter board. 680 nits high‑brightness IPS panel delivers all‑viewing‑angle performance with clear image. This display integrates CTP capacitive touch panel and supports wide temperature working condition. Overall dimension 48.72 × 70.26 × 10.8 mm, active display area 36.72 × 48.96 mm. Great for industrial handheld devices, portable monitors, testing equipment, smart terminals and human‑machine interaction projects. Samples and custom solutions are available. Please contact us for datasheet and bulk quotation.


Size		★
Resolution
Interface
Luminance
(nits)
Viewing angle		 mm
Overall size		 mm
Active Area		IC
Remark
2.4
480*640Type C680ALL48.72*70.26*10.836.72*48.96ST7701S/TBDWide Temperature/IPS/CTP
2.8
480*640Type C670ALL56.1*77.29*1543.2*57.6ST7701S/TBDIPS/CTP
3.4
480*480Type C950ALL65.72*69.64*1660.48*60.48ST7701S/FT6336GIPS/CTP
3.4
480*480Type C950ALL65.72*69.64*14.060.48*60.48ST7701SIPS
3.5
480*640Type C360ALL64.0*85.0*17.053.28*71.04ILI9806EIPS/CTP
3.5
480*640Type C460ALL64.0*85.0*14.653.28*71.04ILI9806EIPS
3.5
640*480Type C660ALL85.80*85.80*1670.08*52.56ST7703IPS/CTP
3.5
640*480Type C740ALL74.38*62.35*1470.08*52.56ST7703IPS
4
720*720Type C650ALL84*85.99*15.571.928*71.928ST7703/GT911IPS/CTP
4
720*720Type C700ALL77*80*1471.928*71.928ST7703IPS
4
480*800Type C430ALL58.26*98.10*1651.84*86.40ST7701S/GT911IPS/CTP
4
480*480Type C1000ALL77*80*1671.86*70.18ST7701S/GT911IPS/CTP
4.3
480*800Type C405ALL62.5*105.55*15.356.16*93.6ILI9806E/GT911IPS/CTP
5
480*854Type C542ALL67.56*122.35*15.2561.632*109.6536ILI9806E/GT911IPS/CTP
5
480*854Type C615ALL67.56*122.35*13.761.632*109.6536ILI9806EIPS
5
720*1280Type C420ALL67.56*122.35*15.3562.10*110.40ILI9881C/GT911IPS/CTP
5
720*1280Type C500ALL67.56*122.35*13.7562.10*110.40ILI9881CIPS
5.5
800*1280Type C500ALL86.04*144.96*1794.2*150.72ILI9881C/GT911IPS/CTP
5.5
720*1280Type C600ALL74.28*133.21*14.568.04*120.96ILI9881CIPS
5.5
1080*1920Type C350ALL79.04*137.67*14.271.928*71.928ILI9806E/GT911IPS/CTP
5.5
1080*1920Type C450ALL79.04*137.67*1371.928*71.928ILI9881CIPS
6
720*1440Type C480ALL95.04*167.63*15.5568.04*136.08ILI9881C/GT911IPS/CTP
7
1200*1920Type C410ALL108.7*165.80*15.5194.50*151.20TBDIPS/CTP
7
800*1280Type C420ALL119.46*176.78*15.894.20*150.72ILI9881CIPS/CTP
8
1200*1920Type C250ALL124.6*190.8*15.01107.64*172.22GT911IPS/CTP
8
800*1280Type C400ALL130.7*200.1*16.15107.64*172.224GT911IPS/CTP
10.1
1200*1920Type C220ALL159*244.6*15.9135.36*216.58TBDIPS/CTP
10.1
1200*1920Type C280ALL174.37*255.12*15.9135.36*216.58TBDIPS/CTP
