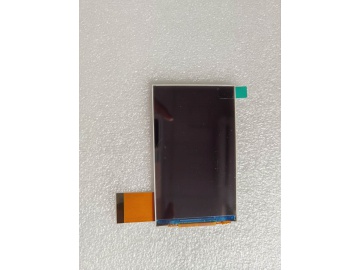

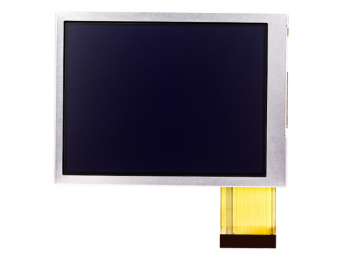

1.8 Inch Transflective Blanview LCD 296×220 ILI9342 16‑Bit MCU 350nits

Short Description:

1.8‑inch Blanview transflective TFT LCD module, 296222 resolution, ILI9342 driver IC, 16‑BIT MCU interface, 350nits brightness. Sunlight readable display for handheld, industrial outdoor devices.


  • Size: 1.8
  • Resolution: 296*222
  • Interface: 16 BIT MCU
  • Luminance (nits): 350
  • Viewing angle: ALL
  • Overall size: 42.07*39.71*2.5
  • Active Area: 35.52*26.64
  • IC: ILI9342
  • Remark: Transflective
down load to pdf

Product Details

Product Tags

Our 1.8‑inch Blanview transflective TFT LCD module features 296×222 resolution, driven by ILI9342 IC with 16‑BIT MCU interface.

The transflective Blanview technology delivers good readability under direct sunlight, supported by 350nits brightness and full viewing angle.

Overall dimension: 42.07×39.71×2.5 mm, active display area: 35.52×26.64 mm. This sunlight‑readable lcd is widely used for portable handheld devices, field‑test instruments and outdoor industrial terminals.



Size

Resolution
Interface
Luminance
(nits)
Viewing angle		 mm
Overall size		 mm
Active Area		IC
Remark
1.8
296*22216 BIT MCU350ALL42.07*39.71*2.535.52*26.64ILI9342Transflective
1.8
296*222MCU/SPI/RGB350ALL42.07*38.71*2.535.52*26.64ILI9342Transflective
2
240*320MCU/SPI/RGB250ALL35.80*52.10*2.6530.60*40.80ST7789Vtransflective
2
240*320MCU/SPI/RGB200ALL35.80*52.10*3.8530.60*40.80ST7789Vtransflective
2
320*240MCU/SPI/RGB350ALL46.50*41.56*2.7040.80*30.60ILI9342CTransflective
2★320*240MCU/SPI/RGB280ALL46.50*41.56*3.9040.80*30.60ILI9342CTransflective/RTP
2★320*240MCU/SPI/RGB IIC300ALL54.50*47.56*4.3540.80*30.60ILI9342CTransflective/CTP
2.1
122*250MCUReflectiveALL27.068*56.20*1.0823.668*48.5ST7302Reflective
2.2
240*320MCU640ALL41.70*56.16*2.633.84*45.12ST7789VBlanview
2.4★240*320MCU/SPI/RGB300ALL42.92*60.26*2.4536.72*48.96ST7789VTransflective
2.4★240*320MCU/SPI/RGB220ALL42.92*60.26*3.6536.72*48.96ST7789VTransflective/RTP
2.4★240*320MCU/SPI/RGB IIC240ALL42.92*60.26*3.7036.72*48.96ST7789V/FT6336GTransflective/CTP
2.4
240*320MCU/SPI/RGBIIC240ALL42.92*60.26*3.7036.72*48.96ST7789VTransflective
2.6
320*432MIPI500ALL46.76*65.85*2.6039.84*53.78ILI9488Transflective
2.6
320*432MCU/SPI/RGB500ALL46.76*65.85*2.6039.84*53.78ILI9488Wide temp-30~85℃
2.6
320*432MCU/SPI/RGB425ALL46.76*65.85*3.9139.84*53.78ILI9488RTP
2.6
320*432MCU/SPI/RGBIIC475ALL46.76*65.85*4.1839.84*53.78ILI9488/FT6336GCTP
2.8
240*400SPI/MCU/RGB1205H44.00*72.50*2.6036.72*61.20ILI9327Transflective
2.8
240*320SPI/MCU/RGB160ALL50.50*69.70*2.5043.20*57.60ST7789VTransflective/CTP
2.8
240*320MCU/SPI/RGBIIC150ALL52.90*79.30*3.9543.20*57.60ST7789V
3.5
240*320SPI/MCU/RGB1206H60.00*82.90*2.7853.64*71.52ILI9341Transflective
3.5
240*320MCU/SPI/RGBIIC1206H66.24*87.12*6.1653.64*71.52ILI9341Transflective/CTP
3.5
320*480SPI/MCU150ALL52.26*80.60*2.2148.96*75.60ST7365Transflective
3.5
480*640RGB1550ALL64.00*85.00*3.1053.28*71.04ILI9806Eblanview
4
480*800RGB6H6H57.14*96.85*2.6051.84*86.40ST7701SITransflective
4
480*800RGBIIC6H6H57.86*97.70*4.0851.84*86.40ST7701SITransflective/CTP
4.3
480*272RGB450ALL105.50*67.20*2.9095.04*53.86/blanview
5
800*480RGB18012H120.70*75.90*2.95108.0*64.80HX8264+HX8664Transflective
5
800*480RGB IIC15012H132.72*87.8*4.92108.0*64.80HX8264490000457911Transflective/CTP
5
800*480RGB

DevelopingBlanview
10
1200*1600MIPIReflectiveALL157.86*211.88*0.97152.46*203.28HX8279*2Reflective
