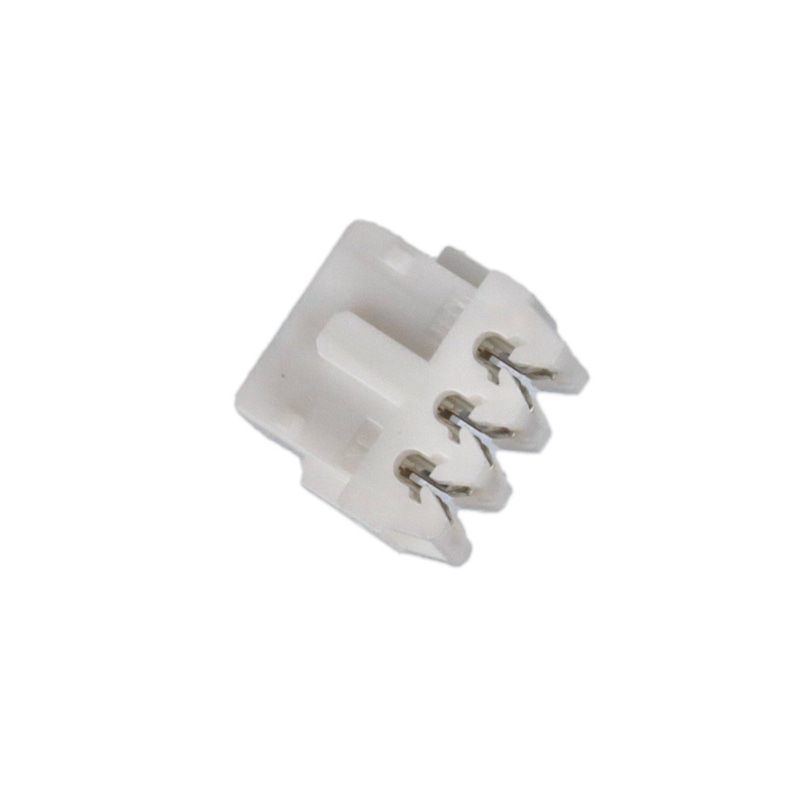

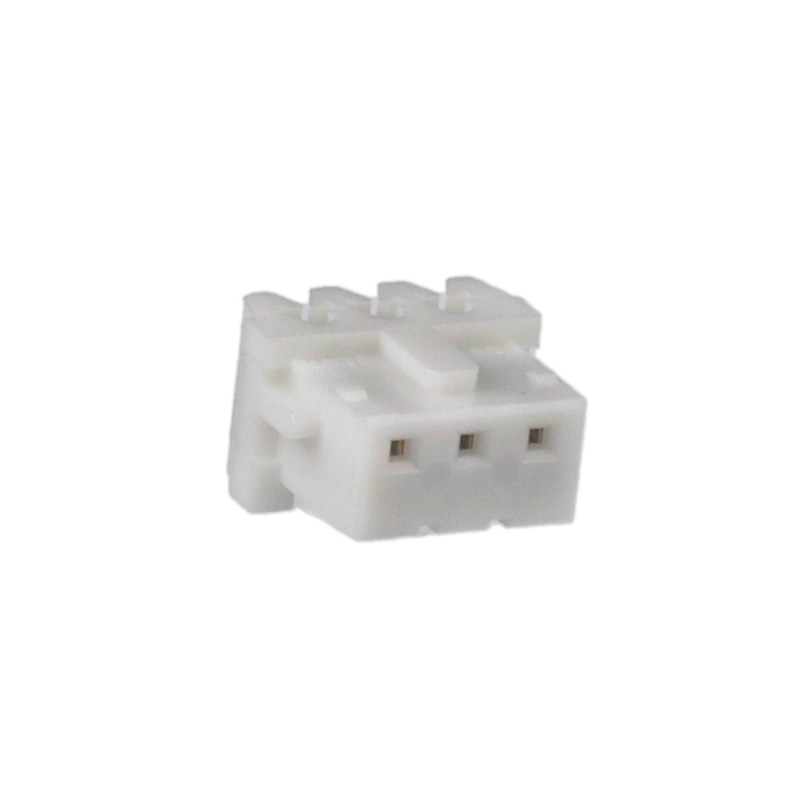

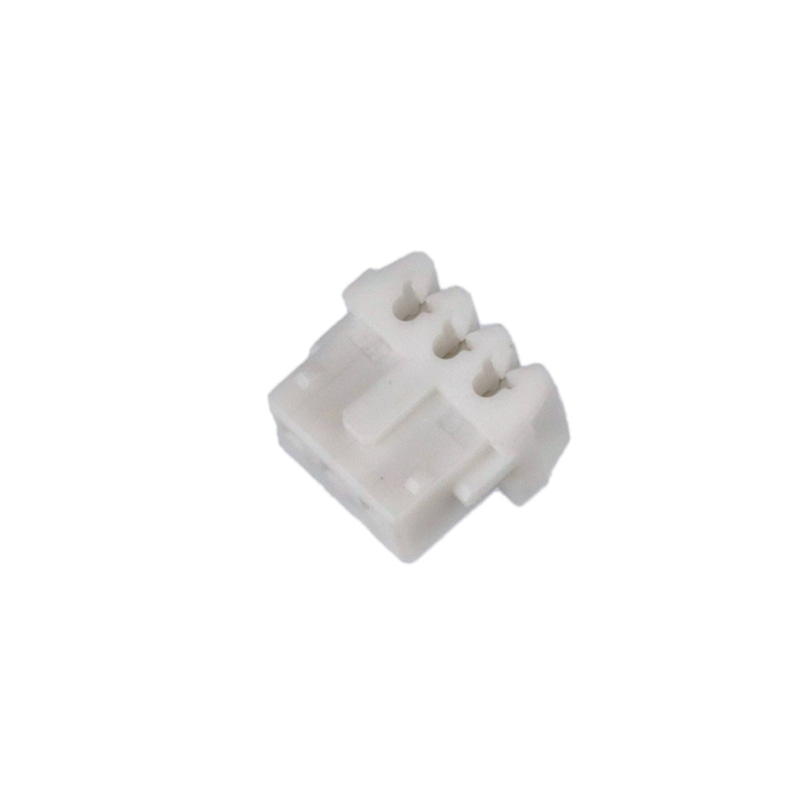

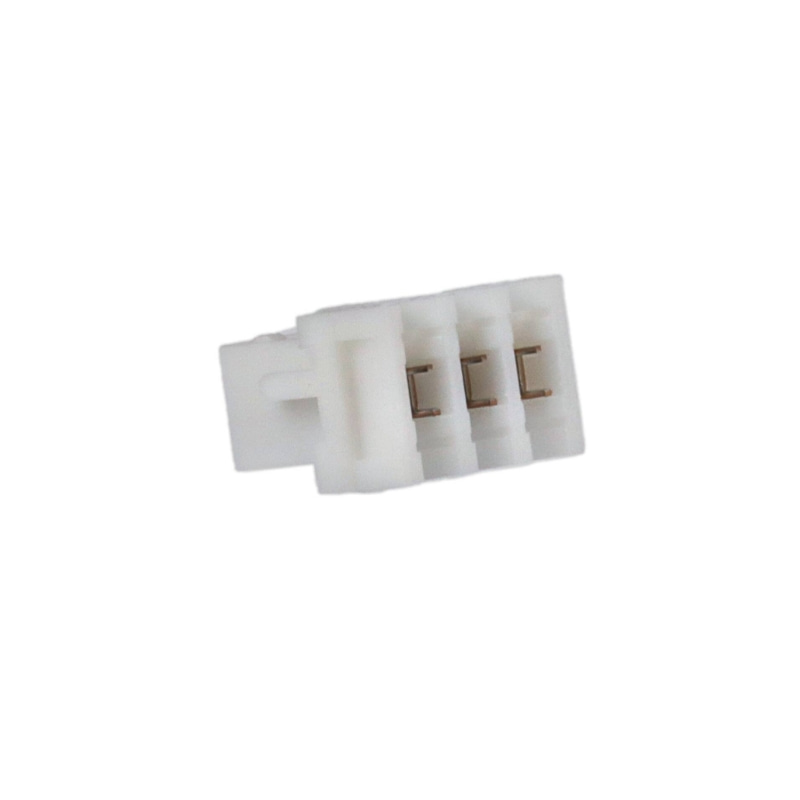

JST 03KR-D6S-P

     JST 03KR-D6S-P connector is an IDC (Insulation Displacement Connection) type connector manufactured by JST and is mainly used for cable connections. The following are the functions and descriptions of this connector:

Manufacturer Model Number: 03KR-D6S-P

Manufacturer: JST

Package/Specification: KRD receptacle (for PH header)　　

Pitch: 2mm

Number of rows: 1

Contact Plating: Tin

Electrical Characteristics: Rated voltage 100VDC or 100VAC, contact resistance 20mΩ, insulation resistance 1000MΩ, withstand voltage 1000V AC/min.

Environmental Characteristics: Operating temperature range from -25℃ to 85

Packing: Usually sold in boxes, each box contains 2000 units.

Product Description: The connector is a KRD type receptacle for PH (Printed Head), with Right Angle and Dual Key design, providing stable connection and anti-misplaced function.

Application: Suitable for cable installation and can be used in a wide range of electronic devices and systems, especially in applications requiring stable electrical connections and compact space.
